PHITITANS

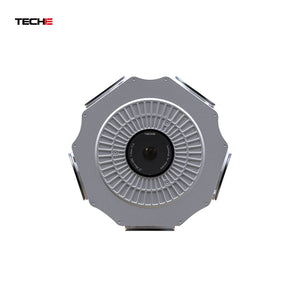

Street View Imaging System

The PHTITANS Street View Imaging System redefines panoramic capture with military-grade precision and unmatched adaptability. Engineered for professionals, it delivers cinema-quality, spherical visuals anywhere— from urban canyons to extreme environments. Complete your kit with our modular field accessories for limitless capture possibilities.

Sample Videos

The original 8K footage can be downloaded here. Visit our YouTube channel @techechina for more videos.

Sample Videos

The original 8K footage can be downloaded here. Visit our YouTube channel @techechina for more videos.

Technical Specifications

Lens

6 Aspherical ultra-wide-angle lens

Weight

Approx. 2.4 kg

Aperture

F2.8

Sensor

1/2.3 inch

Focal Length

3mm

FOV

166°/lens (Vertical 120°, Horizontal 89°)

Network & Power

IP Address: DHCP / Manual configuration
External Power Supply: 12.6V/6A
Battery Capacity: 10200mAh (~140min runtime)
Power Consumption: 30W
Ethernet Port: Gigabit RJ45
WiFi: 802.11ac supported
GPS: Supported (~3m accuracy)
PPS: Supported
External Trigger Shooting: Supported


Max Output Resolution: Up to 15,000*7,500 (15K)
Single-Lens Resolution: 4,000*3,000
Shooting Modes: Single shot / Auto burst
Capture Interval: 1/5 sec – 1200 sec
Image Format: JPEG
Stitching Method: Batch auto-stitching
Exposure Modes: Auto / ISO priority / Shutter priority / Per-lens exposure / Manual
ISO Range: 100–6400
EV Compensation: -5 to +5
Shutter Speed: 1/30 sec – 1/8000 sec
White Balance Adjustment: Supported (Unified WB)

Live Streaming

Protocol: RTMP
Resolution: 3,840*1,920@15fps/30fps; 1,920*960@15fps/30fps
Color depth: 8-bit
Bitrate: 1-10Mbps
Encoding format: H.264

Video

Max Output Resolution: 14,400*7,200 (Requires ≥12GB GPU VRAM)
Bitrate: 60Mbps
Frame Rate: 30FPS
Video Format: MP4
Color Depth: 8-bit
Encoding Format: H.264/H.265

Audio

Built-in Mics: 6
External Mic: 3.5mm jack supported

Environmental Ratings

Protection Level: IP65
Operating Temperature: -10°C to 50°C
Operating Humidity: 20%–80%

Software & Storage

SDK & API: Supported
Storage Media: SATA3 SSD

Dimensions

(Φ) 198mm (H) 145mm
